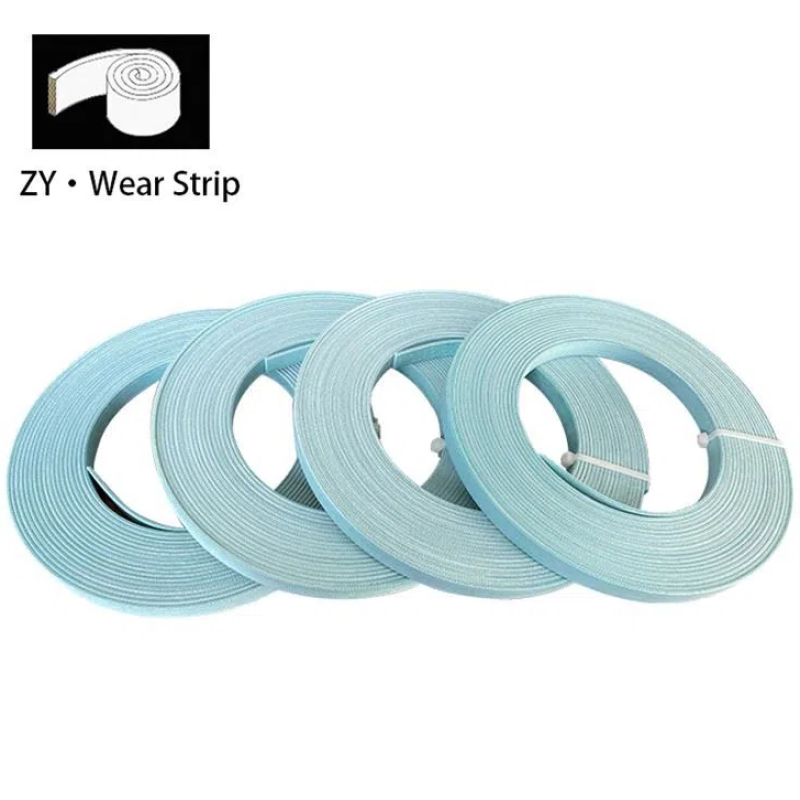

GUIDE ELEMENT

APPLICATION RANGE

Fabric Reinforced Polyester Composite Wear Strip is uitable for all commonly used hydraulic fluids such as mineral or synthetic oils, as well as water based fluids.
It is an excellent electrical insulator and features enhanced sliding properties in various media.

STANDARD MATERIALS

Woven Fabric Reinforced Polyester Composite



WORKING CONDITIONGS

Temperature

-50℃/130℃

Slide speed

1m/s

Pressure

max.100N/mm2 at25℃; max.50N/mm2 >60℃

Max. compressive strength

330MPa(static),100Mpa(dynamic)

Shear strength

80Mpa

Color

Blue

Media

hydraulic oil(mineral oil based), flammable hydraulic fluid, water,etc.
